Brushless DC motors
Brushless DC motors have a wide range of applications, and it is crucial to quickly and accurately develop high-efficiency, durable motor products to meet rapidly changing industry demands. The performance of a machine depends on the motor's capabilities, while its instant response relies on the compatibility between the motor and the driver. With decades of experience in developing brushless DC motors and computer-aided simulations, we assist customers in rapidly launching new BLDC solutions that prioritize power saving and reducing carbon emissions, ensuring they stay ahead in a competitive and eco-conscious market.

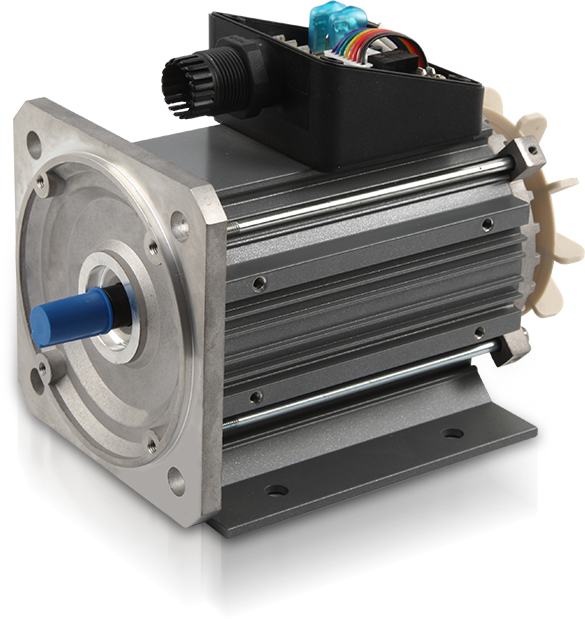

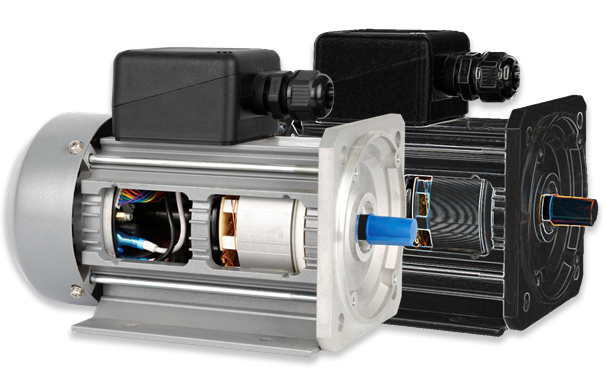

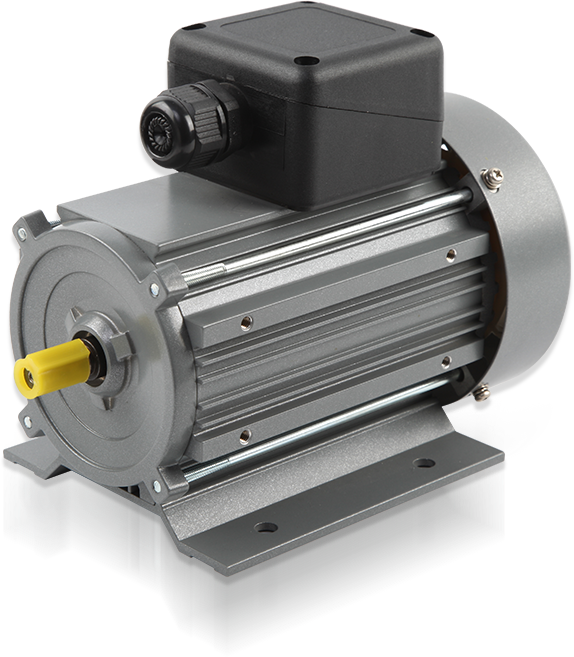

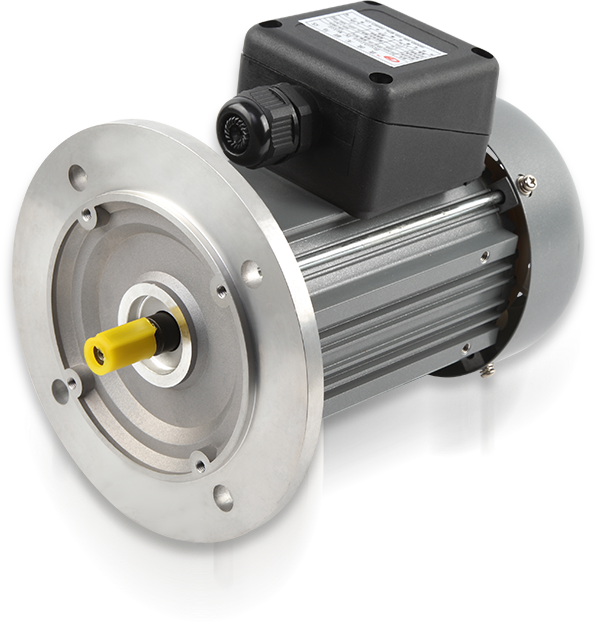

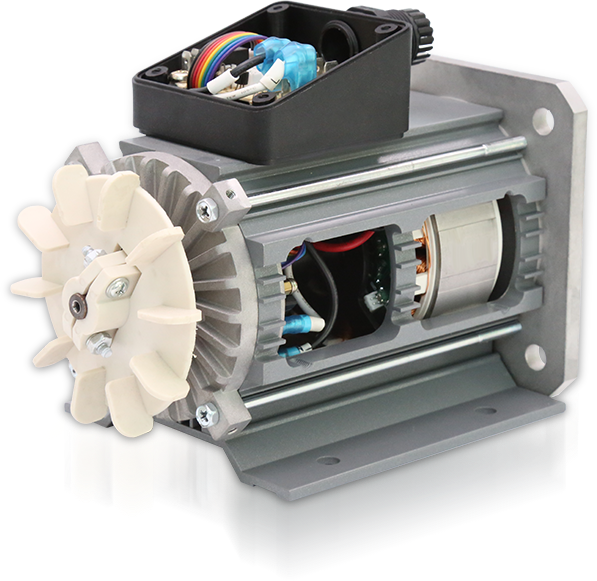

We’ve created the world’s first BLDC motor with a built-in driver and a compact, patented design, offering power ranges from 1/8 HP to 5 HP for diverse applications. This integrated design eliminates the need for an additional control box, making maintenance and troubleshooting more convenient. We can customize any signal outputs for your equipment, including emergency stop switches, speed adjustments, light outputs, fault signals, and forward and reverse control, to achieve machine intelligence. Additionally, brushless DC motors provide high torque output at low speeds, along with high efficiency, energy savings, compact size, and quiet operation. Furthermore, the motor has obtained the most stringent certifications, including CE, UL, CCC, ROHS, and high-efficiency motor certifications.
Dimensions
IEC Motor Specifications
| Frame Size | Frame 63 | Frame 71 | Frame 80 | Frame 90 | ||
| Output | 1/4HP | 1/2HP | 1HP | 2HP/3HP |
|
|
| Efficiency | >77% | >81% | >85% | >90% |
|
|
| Speed Range | Optional |
Optional |
Optional |
Optional
|
||
| Assembly Dimensions | A | 100 | 112 | 125 | 140 | |
| B | 80 | 90 | 100 | 125 | ||
| V | 40 | 45 | 50 | 56 | ||
| H | 63 | 71 | 80 | 90 | ||
| K | 7 | 7 | 9 | 10 | ||
| BA | 126 | 130 | 155 | 171 | ||
| Shaft/Axis Dimensions | D | 11 | 14 | 19 | 24 | |
| E | 23 | 30 | 40 | 50 | ||
| B5 Assembly Dimensions | XX | 122 | 122 | 156 | 158 | |
| M | 130 | 130 | 165 | 165 | ||
| N | 110 | 110 | 130 | 130 | ||
| P | 160 | 160 | 200 | 200 | ||
| S | 10 | 10 | 12 | 12 | ||
| T | 3.5 | 3.5 | 3.5 | 3.5 | ||
| B14 Assembly Dimensions | M | 75 | 85 | 100 | 115 | |
| N | 60 | 70 | 80 | 95 | ||
| P | 90 | 105 | 120 | 140 | ||
| S | M5 | M6 | M6 | M8 | ||
| T | 2.5 | 2.5 | 3 | 3 | ||
| General Dimensions | L | 229 | 234 | 270 | 350 | |
| AD | 102 | 103 | 125 | 135 | ||
| HA | 165 | 174 | 205 | 225 | ||
| X | N/A | N/A | N/A | N/A | ||

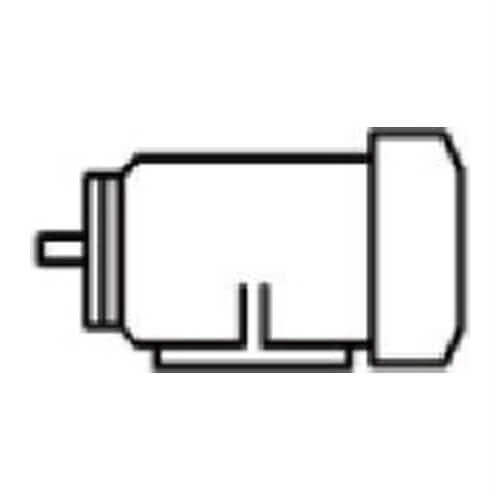

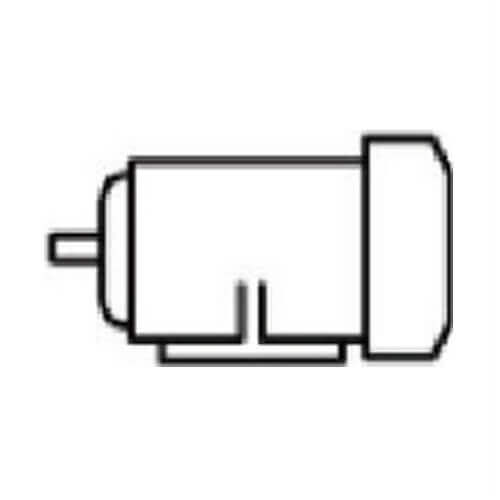

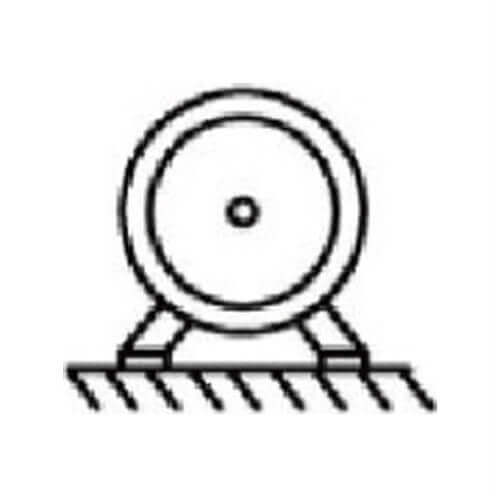

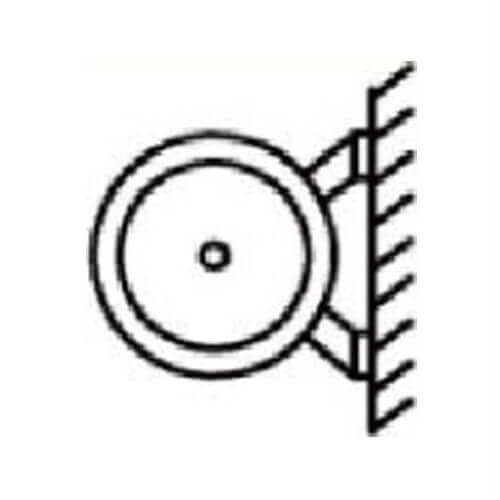

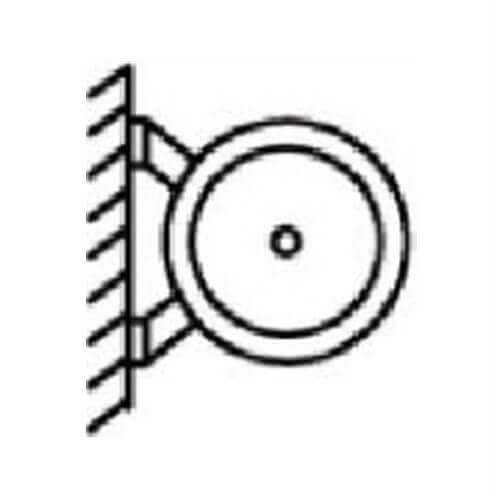

Horizontal (B3)

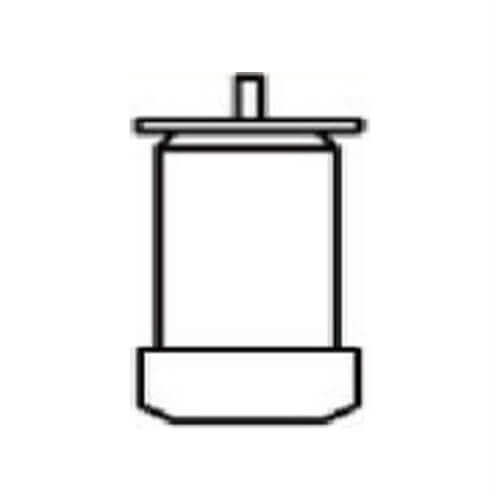

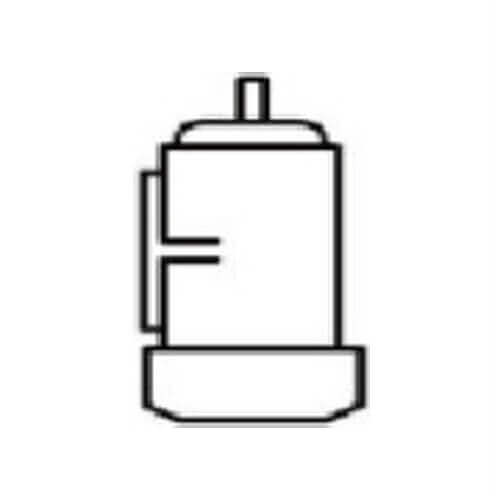

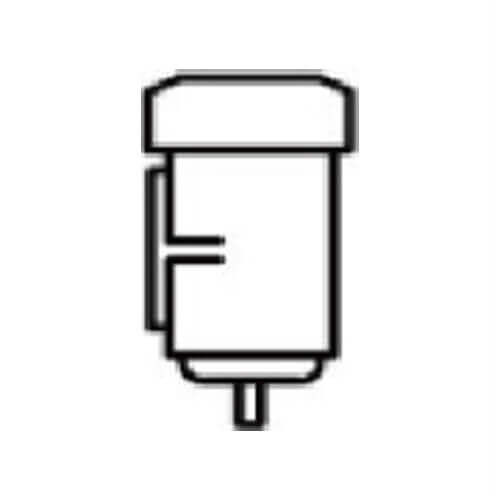

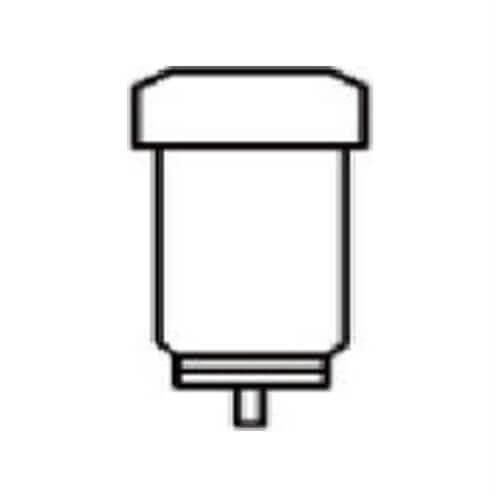

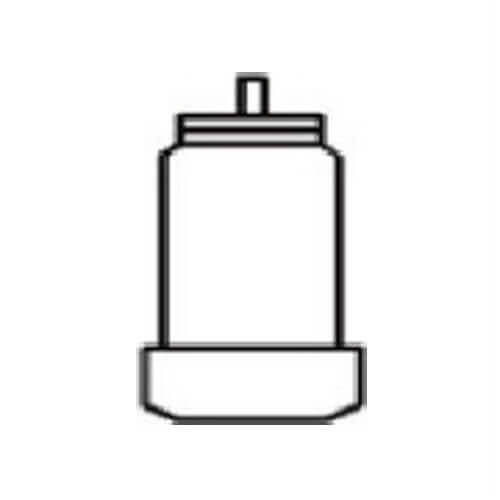

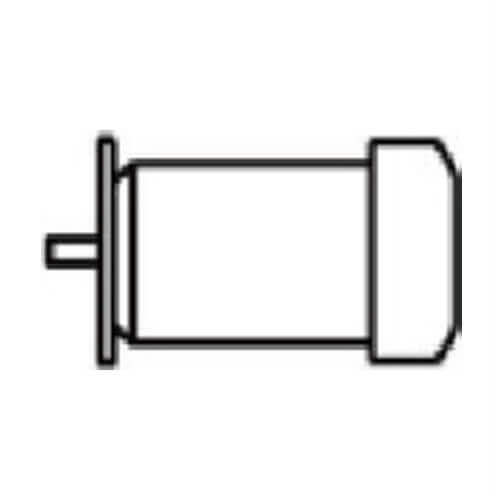

Vertical (B5)
